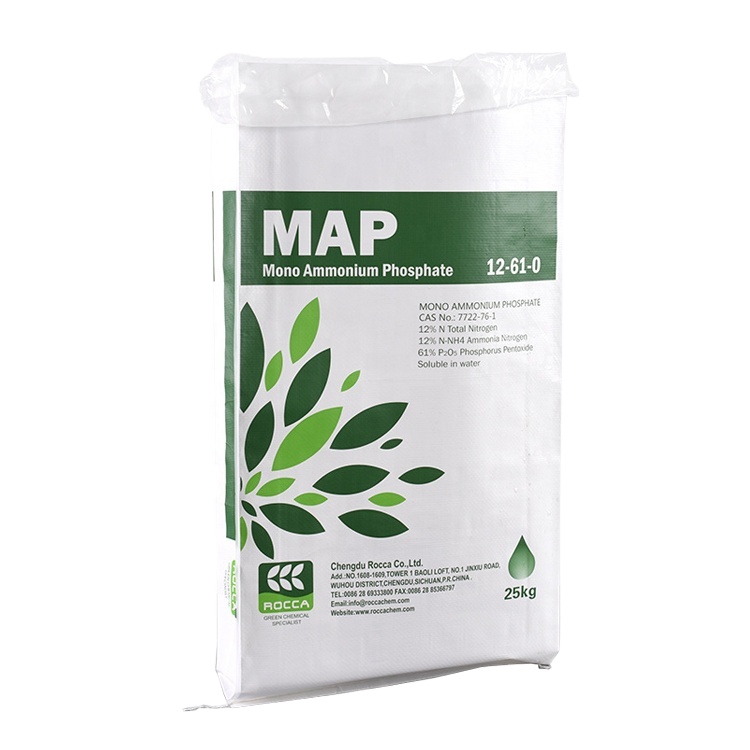

BOPP Laminated PP Polypropylene Woven Sack Bags represent the convergence of industrial-grade durability and high-end commercial presentation. These advanced packaging solutions combine the robust structural integrity of polypropylene (PP) woven fabric with the superior aesthetic and protective qualities of Biaxially Oriented Polypropylene (BOPP) film lamination. Designed for universal packing applications across diverse sectors—including agriculture, chemicals, construction materials, and food products—these bags deliver exceptional performance in both protection and brand communication.
 |  |  |
The engineering of BOPP laminated woven sacks involves sophisticated multi-layer construction and precision manufacturing techniques to ensure compatibility with demanding filling, storage, and transportation environments.
The bag's performance derives from its stratified composition:
Woven PP Substrate: The foundation consists of circular or flat PP woven fabric (typically 60–140 GSM), providing exceptional tensile strength, tear resistance, and load-bearing capacity. The weave density (commonly 8×8 to 14×14 mesh per inch) can be adjusted based on the weight and abrasiveness of the contents.
BOPP Film Layer: A biaxially oriented polypropylene film (12–25 microns thickness) is laminated to the exterior. This orientation process stretches the film in both machine and transverse directions, creating a material with superior clarity, gloss, and mechanical strength compared to standard cast PP film.
Adhesive/Coating Interface: A specialized poly coating or adhesive layer bonds the BOPP film to the woven fabric, ensuring delamination resistance during flexing, stacking, and handling.
Optional Interior Liner: For hygroscopic or fine-powder products, a PE (polyethylene) liner or inner valve can be incorporated to prevent sifting, moisture ingress, and contamination.
The defining characteristic of BOPP laminated sacks is the printing methodology:
Process: Graphics are reverse-printed onto the inner surface of the BOPP film using high-resolution gravure cylinders. This technique can achieve up to 8–10 colors with precise registration.
Protection: Once laminated, the print becomes encapsulated between the film and the woven fabric, rendering it immune to scuffing, scratching, fading, and chemical exposure. This ensures that branding remains pristine from the production line to the end-user.
Design Flexibility: Supports intricate patterns, photographic imagery, gradient backgrounds, and micro-text security features that are impossible with standard flexographic printing on woven fabric.
BOPP laminated sacks are manufactured to precise specifications:
Width Range: 25 cm to 90 cm (tubular or gusseted construction)
Length Range: 40 cm to 150 cm, tailored to specific bulk densities and target weights
Gusset Options: Side gussets can be added to increase volume and improve pallet stability, allowing the sack to assume a rectangular "block" shape when filled.
The sack architecture accommodates various sealing methods:
Open Mouth with Hemmed Top: Standard folded and sewn hem for needle sewing or heat sealing after filling.
Valve Construction: Pasted valve openings for automated filling systems common in cement, chemical, and flour industries.
Block Bottom: A flat, stable base allowing the sack to stand upright independently—ideal for retail display and automated palletizing.
Handle Integration: Heavy-duty die-cut or loop handles can be incorporated for consumer-friendly 5–25 kg formats.
The BOPP lamination creates an effective barrier against humidity, rain, and dust. This is critical for moisture-sensitive products such as fertilizers, sugar, rice, and powdered chemicals. When combined with an inner PE liner, the sack provides near-hermetic protection suitable for tropical climates and long-distance maritime shipping.
The woven PP substrate provides excellent resistance to drop impacts, punctures, and elongation under load. The BOPP film adds dimensional stability and prevents the "zippering" failures common in uncoated woven bags when punctured. This durability reduces product loss during rough handling in warehouses, construction sites, and agricultural fields.
In commoditized markets, packaging appearance directly influences purchasing decisions. BOPP laminated sacks enable retail-quality graphics on industrial packaging, allowing commodity producers to differentiate through branding, nutritional information, usage instructions, and certification logos (Organic, ISO, HACCP, etc.).
Both PP and BOPP are chemically stable materials resistant to acids, alkalis, and organic solvents (with specific limitations for concentrated oxidizers). They do not support mold growth and are impervious to rodent attack, making them suitable for chemical and food applications alike.
Despite their premium features, these sacks remain lightweight compared to multi-wall paper or jute alternatives. Their resistance to tearing and weather allows for outdoor storage flexibility, while their consistent dimensions facilitate optimized pallet patterns and container loading.
BOPP laminated woven sacks serve diverse industrial and commercial sectors:
Agriculture: Seeds, fertilizers (NPK, urea), pesticides, animal feed, and grain storage where UV resistance and moisture protection are essential.
Food Processing: Rice, wheat flour, maize meal, sugar, salt, and pulses requiring food-grade contact surfaces and appealing retail presentation.
Chemical Industry: Polymer resins, plastic granules, industrial powders, and petrochemical products where contamination prevention is critical.
Construction Materials: Cement, mortar mixes, gypsum, and putty powders—particularly premium or specialty formulations requiring weatherproofing during outdoor storage.
Consumer Goods: Pet food, charcoal, and gardening products where shelf appeal influences consumer selection in hardware and garden centers.
Cylinder Engraving Investment
Custom BOPP printing requires engraved gravure cylinders for each color, representing a significant upfront investment. Minimum order quantities (MOQs) typically range from 20,000 to 50,000 units depending on bag size. Ensure artwork approval before cylinder production to avoid costly revisions.
Temperature Limitations
While PP maintains integrity across wide temperature ranges, the adhesive lamination may degrade under sustained exposure above 80°C (176°F). Avoid storage near heat sources or in direct sunlight for extended periods prior to filling.
Sharp Object Avoidance
Although highly puncture-resistant, the BOPP film can be compromised by sharp metal edges, nails, or improper forklift tines. Always use smooth handling surfaces and avoid dragging loaded sacks across rough concrete or gravel.
Stacking Protocols
Observe safe stacking heights based on the sack's safety factor (typically 5:1 or 6:1). Uneven stacking concentrates stress on corner seams and can lead to catastrophic failure of bottom layers.
Pre-Use Storage
Store empty sacks in dry, covered conditions. Pre-existing moisture in the fabric can become trapped beneath the BOPP lamination, creating potential microclimates for mold if filled with hygroscopic products.
Q1: What distinguishes BOPP laminated sacks from standard PP woven bags?
A: Standard PP woven bags typically feature simple PP coating or remain uncoated, with basic screen printing. BOPP laminated bags incorporate a separate BOPP film layer that enables high-resolution, photographic-quality printing and provides superior moisture resistance and dust sealing.
Q2: Can these sacks be used for direct food contact?
A: Yes, when manufactured from food-grade virgin PP resins and BOPP films compliant with FDA or EU food contact regulations. Always specify food-grade certification requirements when ordering for sugar, flour, or rice applications.
Q3: Is it possible to print variable data such as batch numbers or dates?
A: While the main BOPP graphics are fixed during lamination, over-printing of batch codes, manufacturing dates, or barcodes can be applied post-lamination via ink-jet or thermal transfer systems during the filling process.
Q4: How do I choose between gusseted and non-gusseted construction?
A: Gusseted sacks form rectangular blocks when filled, maximizing pallet space efficiency and stability for warehouse stacking. Non-gusseted (cylindrical) sacks are more economical and suitable for products where space optimization is less critical than cost minimization.
Q5: Are BOPP laminated sacks recyclable?
A: Both components are polypropylene (Category 5 plastic) and theoretically recyclable. However, the lamination process bonds different PP layers together, requiring specialized recycling facilities capable of separating woven substrate from BOPP film. Mono-material PP sacks are more easily recycled.
Q6: What is the typical production lead time?
A: Standard lead time ranges from 25 to 35 days following artwork approval and cylinder engraving (which requires 7–10 days). Complex multi-color designs or peak seasonal demand may extend this timeline.
